Sheet Piles

Ever since the first cold-formed steel sheet pile was made in Europe in the year 1955, steel industry in India has come a long way. We, at N F Forgings offer cold-formed steel sheet piles conforming to global standards at ultra-reasonable prices.

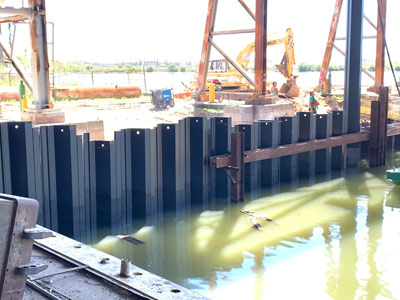

Cold formed steel sheet piles are time-tested solution for all types of earth retention requirements. The installation is simple, fast and cost- effective. Although Vibratory Hammers are the most preferred installation tools, Impact Hammers and Hydraulic Presses can also be used for difficult locations where heavy Vibratory Hammers cannot reach.

Advantages of Steel Sheets Piles

Constant thickness over the whole section.
Unlimited choice of sheet thickness.
Wide range of steel grades are available.
Re-usable
For bigger projects, we can make customized products, as required by the project.
Corner sections can be supplied with pre-bent sheet piles.
Quicker delivery period.
For projects in very highly-corrosive environment, we can supply sheet piles with customized surface treatment coating or hot dip galvanizing, as the case may be.
Handling hole can be punched on every sheet pile as per customers' requirement.

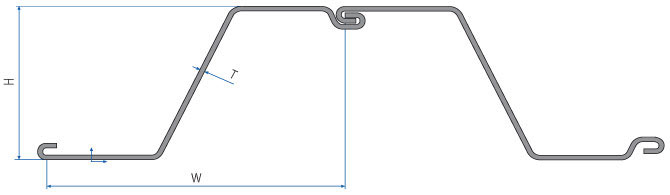

Type	Width, W(mm)	Height, H(mm)	Thickness, T(mm)	Sectional area,Sqr mtr	Weight per running meter (Kg/mtr)	Weight per sq.mtr of wall (Kg/Sq. Mtr)	Moment of Inertia (cm4/m)	Modulus of section (cm3/ m)
NFZ08001	690	380	8.0	0.009	70.8	106.3	3100	270.6
NFZ08501	700	390	8.5	0.010	74.6	111.9	3120	272.4
NFZ08502	700	380	8.5	0.010	75.2	112.8	3230	282.0
NFZ09001	690	390	9.0	0.010	78.3	117.5	3300	288.1
NFZ09002	700	380	9.0	0.010	79.6	119.4	3432	299.6
NFZ09501	690	390	9.5	0.011	82.7	124.0	3530	308.2
NFZ09502	700	380	9.5	0.011	83.3	125.0	3630	316.9
NFZ10001	690	390	10.0	0.011	87.3	130.9	3706	323.6
NFZ10002	700	380	10.0	0.011	88.1	132.1	3780	330.0
NFZ10501	690	390	10.5	0.011	91.9	137.8	3862	337.2
NFZ10502	700	380	10.5	0.011	92.3	138.5	3910	341.4
NFZ11001	690	390	11.0	0.012	95.1	142.7	3990	348.3
NFZ11002	700	380	11.0	0.012	96.4	144.5	4165	363.6
NFZ11501	690	390	11.5	0.012	99.3	149.0	4215	368.0
NFZ11502	700	380	11.5	0.012	99.7	149.5	4390	383.3
NFZ12001	690	390	12.0	0.013	104.3	156.5	4549	397.2
NFZ12002	700	380	12.0	0.013	105.1	157.6	4610	402.5
IN ADDITION TO THE ABOVEMENTIONED SIZES, WE ARE EQUIPPED TO MAKE CUSTOMIZED SIZES TO SUITE THE SPECIFIC REQUIREMENTS OF THE PROJECT SITE.

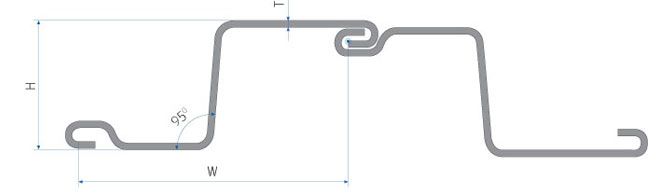

Type	Width, W(mm)	Height, H(mm)	Thickness, T(mm)	Sectional area,Sqr mtr	Weight per running meter (Kg/mtr)	Weight per sq.mtr of wall(Kg/Sq. Mtr)	Moment of Inertia (cm4/m)	Modulus of section (cm3/ m)
NF0175	400	185	7.5	0.0045	38	57	810	88.0
NF0208	400	185	8	0.0051	42	63	885	96.2
NF0385	400	185	8.5	0.0055	45	67.5	910	98.9
NF0409	400	185	9	0.006	49	73.5	985	107.1
NF0595	400	185	9.5	0.0065	52	78	1045	113.6
NF0610	400	185	10	0.007	58	87	1145	124.5
IN ADDITION TO THE ABOVEMENTIONED SIZES, WE ARE EQUIPPED TO MAKE CUSTOMIZED SIZES TO SUITE THE SPECIFIC REQUIREMENTS OF THE PROJECT SITE.

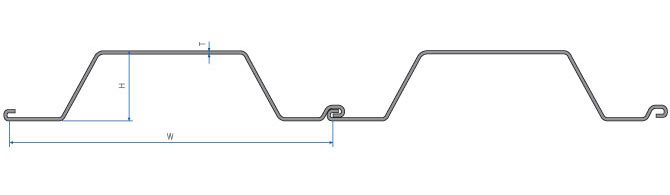

Type	Width, W(mm)	Height, H(mm)	Thickness, T(mm)	Sectional area,Sqr mtr	Weight per running meter (Kg/mtr)	Weight per sq.mtr of wall (Kg/Sq. Mtr)	Moment of Inertia (cm4/m)	Modulus of section (cm3/ m)
NFL 1.5	705	100	3	39.2	21.8	32.7	726	148
NFL 2	705	150	3	41.7	22.9	34.35	1684	229
NFL 3	705	150	4	63.8	35.6	53.4	2480	338
NFL 4	705	180	5	74	40.2	60.3	3989	445
NFL 5	705	180	6.5	96.5	53	79.5	5114	566
NFL 6	705	180	7	104.7	57.8	86.7	5546	609
IN ADDITION TO THE ABOVEMENTIONED SIZES, WE ARE EQUIPPED TO MAKE CUSTOMIZED SIZES TO SUITE THE SPECIFIC REQUIREMENTS OF THE PROJECT SITE.

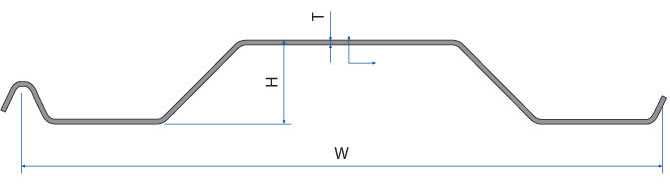

Type	Width, W(mm)	Height, H(mm)	Thickness, T(mm)	Sectional area,Sqr mtr	Weight per running meter (Kg/mtr)	Weight per sq.mtr of wall (Kg/Sq. Mtr)	Moment of Inertia (cm4/m)	Modulus of section (cm3/ m)
NFT0501	750	95	5	0.004	35.1	52.7	637	134.1
NFT0551	750	95	5.5	0.005	38.6	57.9	701	147.6
NFT0601	750	95	6	0.006	40.1	60.2	792	166.7
